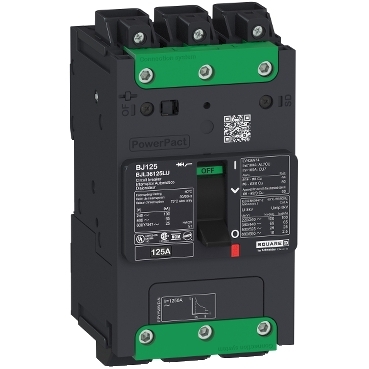

施耐德 Schneider PowerPact B Multistandard

Features

New smaller sized low voltage (LV) molded case circuit breakers (MCCB) for business without borders.

PowerPact B Multistandard molded case circuit breakers are equipped with a thermal-magnetic trip unit with a fixed tripping threshold. Designed to protect electrical systems from damage caused by overloads and short circuits.

Specifications

Rated current from 15 to 125 A
Three levels of breaking capacity: 18kA, 35 kA and 65 kA at 480 V
1, 2, 3, and 4-poles
Individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole
Over-center toggle mechanism providing quick-make, quick-break operation
Auxiliaries are externally visible
Built-in DIN rail and plate mount capability
Variety of operating mechanisms
Common accessories and auxiliaries with Compact NSXm
Can be used as an incomer
Ensures compliance with international standards: UL 489 and IEC 60947-2
Certifications: UL, CSA, NOM, IEC, CCC, and CE marked for global acceptance

For more information, download the PowerPact B Multistandard catalog

Benefits

PowerPact B molded case circuit breakers (MCCB) benefit from 60 years of expertise and leadership in industrial circuit breaker technology, in a new smaller frame size.

Global Design

One design for the world with standardized ratings and a full range of accessories make product selection, installation and maintenance easier
Reduce inventory with shared accessories and auxiliaries with Compact NSXm

Easy and Efficient

Flexible installation for your convenience: Click your circuit breaker into place with the built-in DIN rail - no extra parts required. Alternatively, vertical plate mounting means you can save space
EverLink^TM connectors for reliable and quick bare cable connections
Field-installable one-click auxiliaries and accessories
Wide range of online and offline software tools that help to improve productivity at all stages of your project (Ecoreal, Ecodial, MyPact)

Enhance Equipment Protection

All PowerPact Multistandard circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. This reduces the let-through currents and enhances equipment protection.

Click to watch the video and discover more about PowerPact B Multistandard molded case circuit breaker (MCCB)

Applications

Worldwide availability of the PowerPact B Multistandard makes these smaller sized molded case circuit breakers (MCCB) ideal for customers who have global designs or build and sell in UL markets.

For regional OEMs exporting to USA and other UL zones
International and global multi-site OEMs applications
Electrical distribution building applications for feeder or incomer protection and circuit disconnect solutions

Industrial control panels to serve as an incoming device, branch (feeder circuit) or can be combined with starts to protect motor feeders.
